Bulletproof Wall Armor: A Critical Component of Ballistic Security
Bulletproof wall armor panels are one of the most important elements of any comprehensive bullet-resistant security system. Often referred to as Kevlar wall panels, ballistic fiberglass panels, or bullet-resistant wall panels, these materials are designed to transform standard walls into protective barriers capable of resisting ballistic threats.
At Bulletproof Innovations, we incorporate bulletproof wall armor into the design of safe rooms, secure offices, government facilities, schools, corporate headquarters, and other high-security environments where enhanced ballistic protection is required. Wall armor can be installed behind drywall, wood paneling, decorative finishes, and other architectural surfaces, providing discreet protection without compromising aesthetics.
Our ballistic wall panels are available in full-size sheets or can be custom engineered and cut to size for efficient installation. Whether you need to reinforce a single room, create a secure executive office, or construct a fully protected safe room, our Kevlar panels and bulletproof fiberglass armor systems provide reliable protection while maintaining the appearance and functionality of the surrounding space.
Our goal is to provide effective bullet-resistant wall protection that enhances security without sacrificing the design, appearance, or functionality of your facility.
Contact us today to learn how we can help you secure your space with high-performance wall armor. 800-736-9808
Applications for Bulletproof Wall Armor
Safe Rooms
Panic Rooms
Executive Offices
Government Buildings
Schools and Universities
Financial Institutions
Retail Security Areas
Corporate Headquarters
Critical Infrastructure Facilities
Benefits of Bulletproof Wall Panels
Concealed ballistic protection behind finished walls
Lightweight alternatives to steel armor systems
Custom-cut panels for faster installation
Available in multiple UL 752 ballistic protection levels
Integrates seamlessly with existing architectural designs
Ideal for new construction and retrofit projects
Non Ricochet
Much lighter and easier to work with than steel panels
UL and NIJ Listed - See specifications below
-
UL Rating - Level 1 NIJ Rating - Level 1
Thickness 1/4” Weight 2.6lbs psf
Ammunition tested:
9mm full metal jacket with lead core
Minimum fps 1175 Velocity M/S 358
Number of shots fired 3
-
UL Rating - Level 2 NIJ - Level II-A
Thickness 5/16” Weight 3.6lbs psf
Ammunition tested:
357 mag. jacketed lead soft point
Minimum fps 1250 Velocity M/S 381
Number of shots fired 3
-
UL Rating - Level 3 NIJ - Level III-A
Thickness 7/16” Weight 4.8lbs psf
Ammunition tested:
44 mag. lead Semi-wadcutter gas checked
Minimum fps 1350 Velocity M/S 411
Number of shots fired 3
-
UL Rating - Level 4 NIJ - Level
Thickness 1-3/8” Weight 13.9lbs psf
Ammunition tested:
30 Caliber rifle lead core
Minimum fps 2450 Velocity M/S 774
Number of shots fired 3
-
UL Rating - Level 5 NIJ Rating - Level
Thickness 1-7/16” Weight 14.8lbs psf
Ammunition tested:
7.62mm rifle lead core full metal coper jacket, military ball
Minimum fps 2750 Velocity M/S 838
Shots fired 1
-
UL Rating - Level 5 NIJ Rating Level-2
Thickness 3/8” Weight 3.9lbs psf
Ammunition tested:
9mm full metal jacket with lead core
Minimum fps 1400 Velocity M/S 427
Shots fired 5
-
UL Rating - Level 5 NIJ Rating - Level
Thickness 1-1/8” Weight 11.7lbs psf
Ammunition tested:
5.56mm rifle full metal jacket with lead core
Minimum fps 3080 Velocity M/S 939
Number of shots 5
-
UL Rating - Level 5 NIJ Rating - Level
Thickness 1-7/16” Weight 15.2lbs psf
Ammunition tested:
7.62mm rifle lead core full metal coper jacket, military ball
Minimum fps 2750 Velocity M/S 838
Shots fired 5
Common Applications for Bullet Resistant Wall Armor
Wall armor is one of the most common bullet resistant materials used in our industry. IT’s used for a variety of security applications, specifically to armor anything that is not transparent.
Below are some examples for the uses of bullet proof wall armor. We can help from start to finish, starting with design.
Contact us today at (800) 736-9808 to discuss your security needs and get a customized solution.
Armor Panels for Safe Room Security
Our bullet resistant wall armor is perfect for converting any room into a safe room. It’s much easier to field fabricate than steel, and weighs approximately half of what steel weighs. It also is designed to capture the bullet, providing a much safer environment than that of steel, in the event of a shooting.

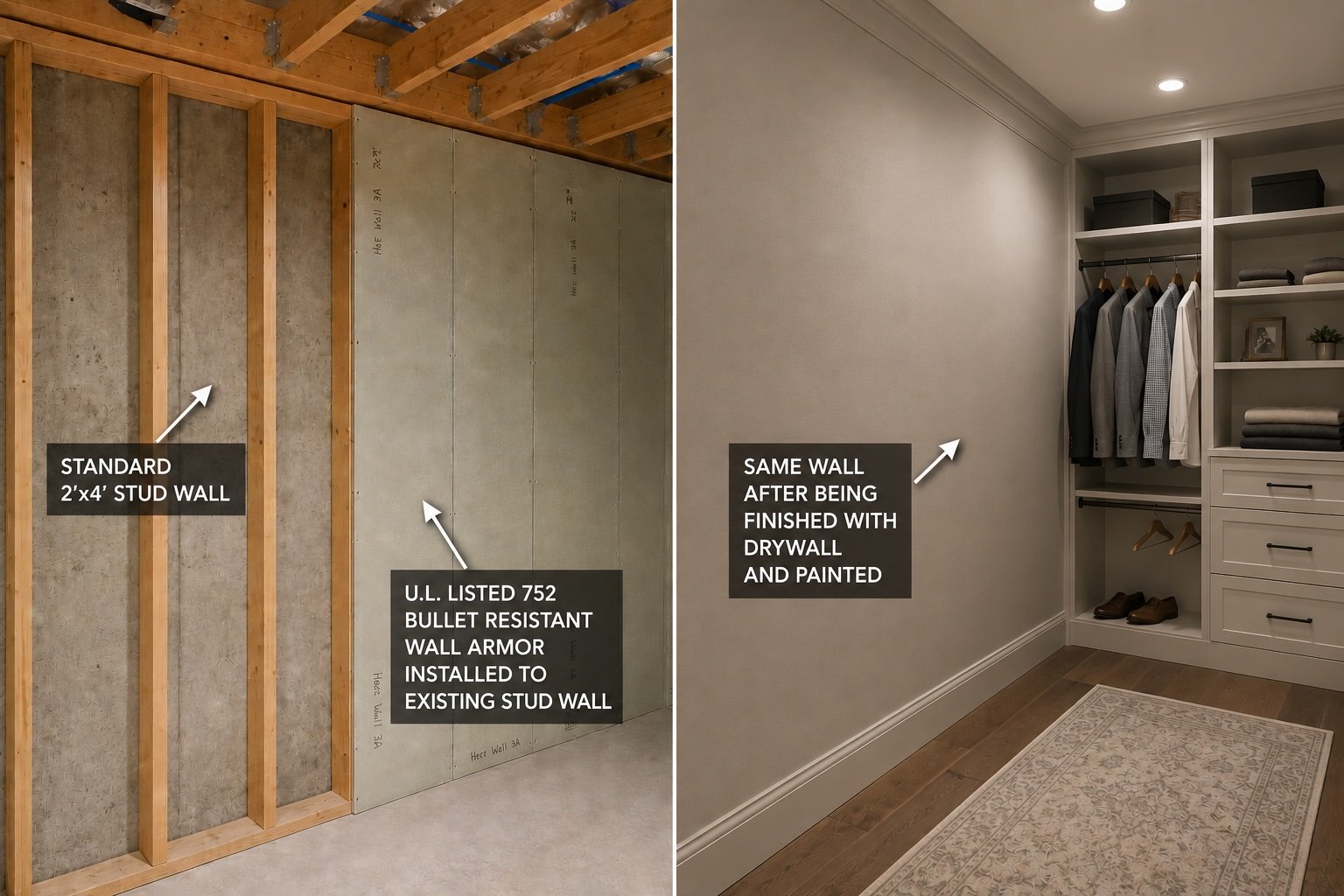

Step One - Apply Bullet Resistant Panels to stud framed wall.
Installation of ballistic wall armor is similar to conventional drywall installation. To reduce installation time and labor costs, Bulletproof Innovations can provide panels pre-cut to project specifications. We also offer comprehensive design, consulting, and project management services, guiding clients from initial concept through final implementation of their safe room and security projects.
Step Two- Drywall and finish walls
The room has been finished with drywall and paint, seamlessly concealing the bullet-resistant wall armor while preserving the security and ballistic protection designed into the safe room.
Step Three - Add a door to the room and it’s done
Our safe room doors are designed to blend seamlessly with the architecture of the home while delivering advanced bullet-resistant and forced-entry protection. Lightweight, secure, and visually discreet, they serve as the final component that completes a fully integrated safe room solution.
Armor Panels for Commercial Security
Bullet-resistant wall armor, often referred to as Kevlar® or ballistic panels, are one of the most versatile and widely used security products in the industry. In addition to reinforcing walls like those shown above, it is commonly used to protect government facilities, banks, convenience stores, courthouses, military installations, schools, and countless other high-security environments. Its adaptability, effectiveness, and ability to be concealed behind standard architectural finishes make this type of wall armor the most widely implemented form of bullet-resistant protection available today.

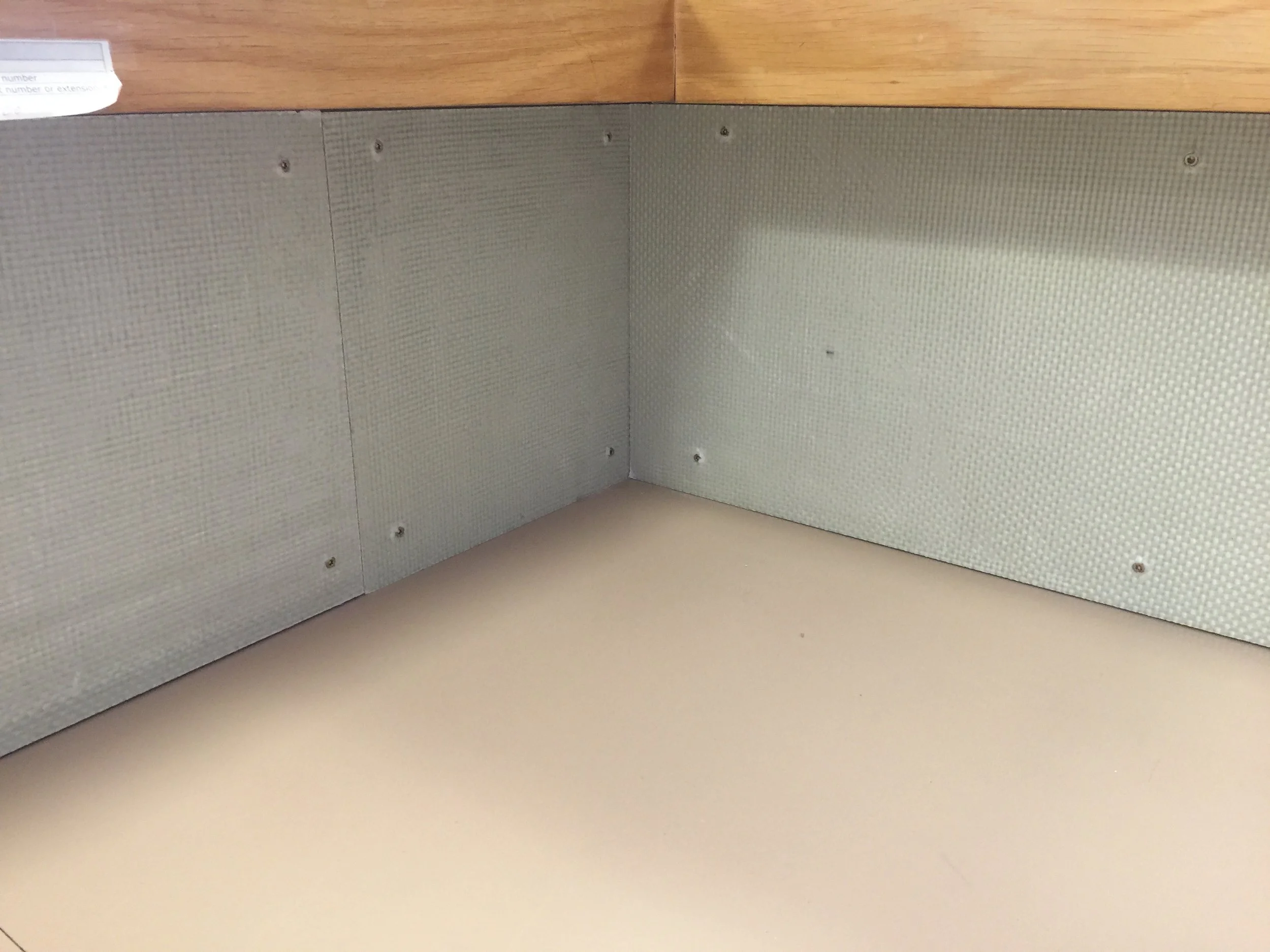

Bullet Resistant Fiberglass Panels to protect customer service counters
When bullet-resistant glazing is installed at a reception, transaction, or customer service area, bullet-resistant wall armor is typically incorporated into the counter and surrounding walls to provide a consistent level of protection. As shown above, ballistic wall armor panels have been installed on the exterior of the counter, helping ensure the counter assembly provides protection comparable to the adjacent bullet-resistant glazing.

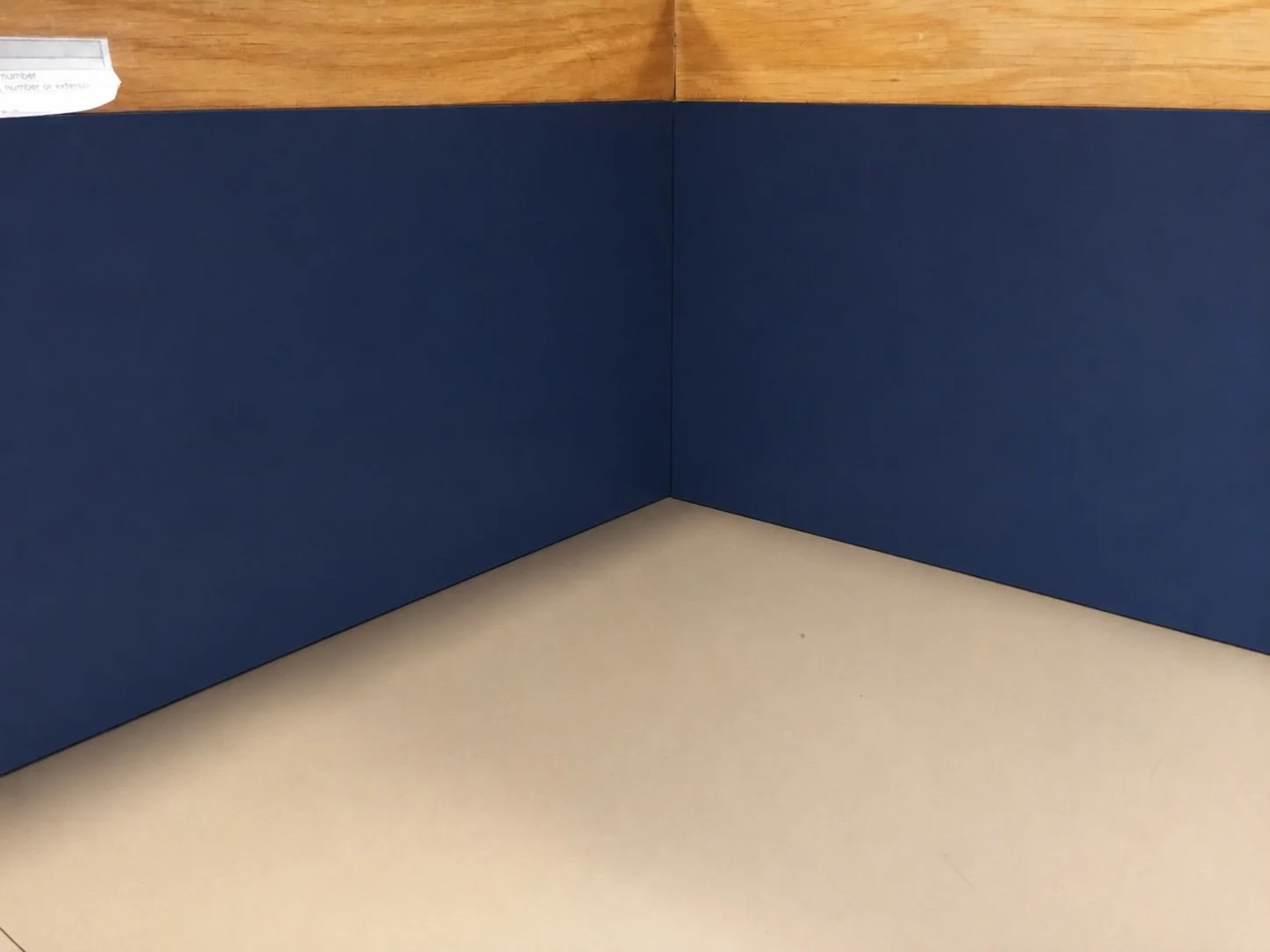

Same counter wall showing that the Bulletproof Fiberglass Panels Finished
Our bulletproof wall panels can be finished by painting them, drywalling, veneering, or using plastic laminate, as shown above. This is the same counter wall shown to the left, after the panels were laminated for finish. Bulletproof wall armor panels are normally finished in any application.
Easy to Apply and Finish
Bullet-Resistant Composite Wall Armor
Bullet-resistant composite wall armor offers a lightweight, highly effective alternative to traditional steel ballistic protection. Weighing significantly less than comparable steel armor systems, composite wall armor is easier to handle, transport, and install, helping reduce installation time and labor costs.
The panels install in a manner similar to conventional drywall and can be easily integrated into new construction or retrofit projects. Once installed, the armor can be concealed behind a wide range of architectural finishes, allowing designers and building owners to maintain the desired appearance of the space without compromising security.
Common finish options include:
Drywall and paint
Wood veneer
Plastic laminate
Solid surface materials (Corian®)
Marble and granite
Decorative wall panels and other architectural finishes
This versatility makes composite wall armor an ideal solution for secure offices, schools, government facilities, healthcare environments, retail locations, safe rooms, and high-end residential applications where both security and aesthetics are important.
Contact us today to get help with your bulletproof security project:
800-736-9808
Bulletproof Panels installed to protect reception area
We have assisted numerous businesses in implementing bullet-resistant security solutions for reception, transaction, and customer service areas—a security enhancement that is becoming increasingly common.
The photo above shows UL 752 Level 3 bullet-resistant wall armor installed below a customer service transaction window and along the adjacent wall, providing continuous ballistic protection for employees behind the secure area.

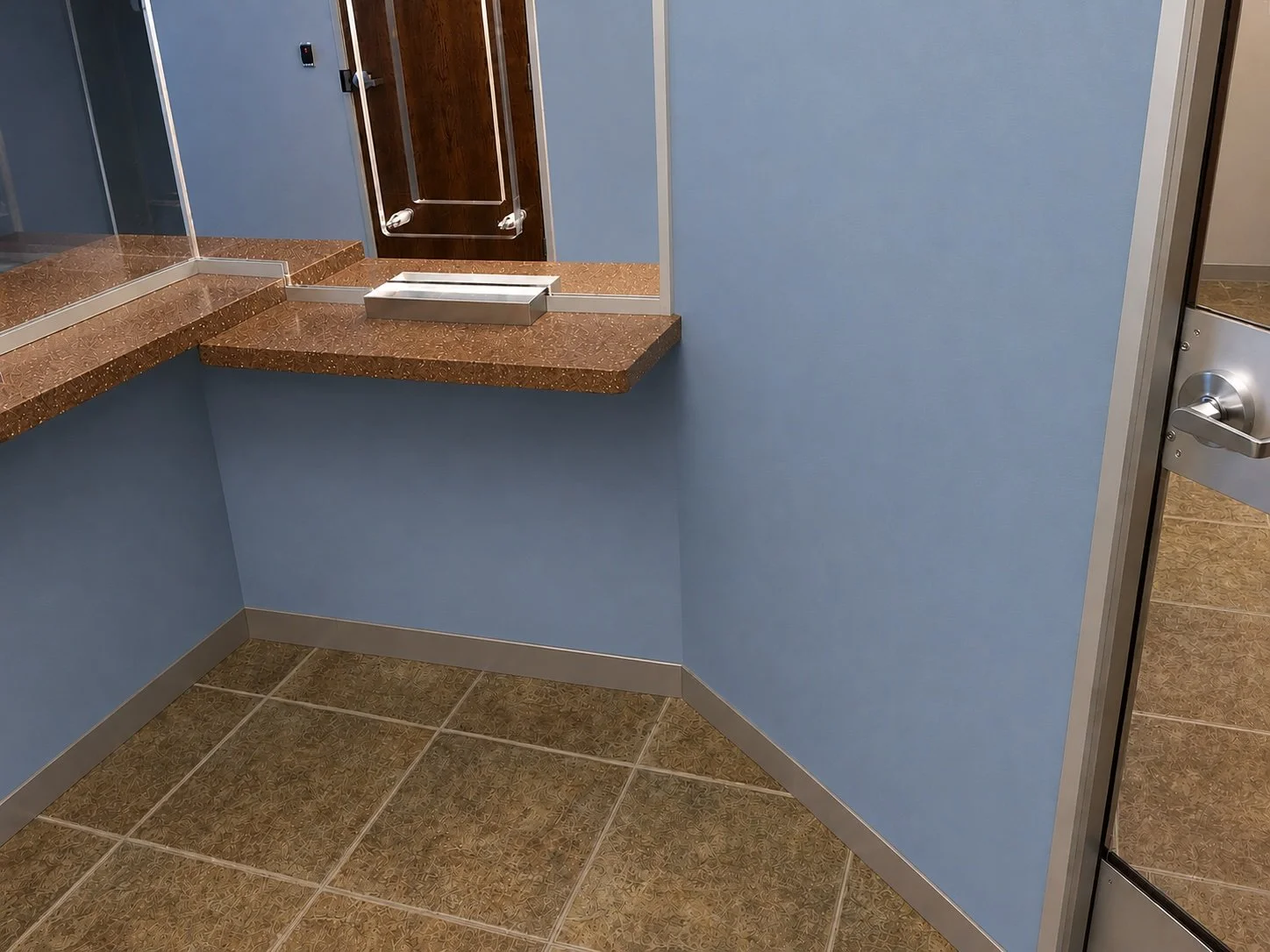

Dry walled and painted
The photo to the left shows the wall after being finished with drywall and paint. The completed assembly provides UL 752 Level 3 bullet-resistant protection, a 1-hour fire rating per ASTM E119, and has been tested for forced-entry resistance in accordance with ASTM F1233.

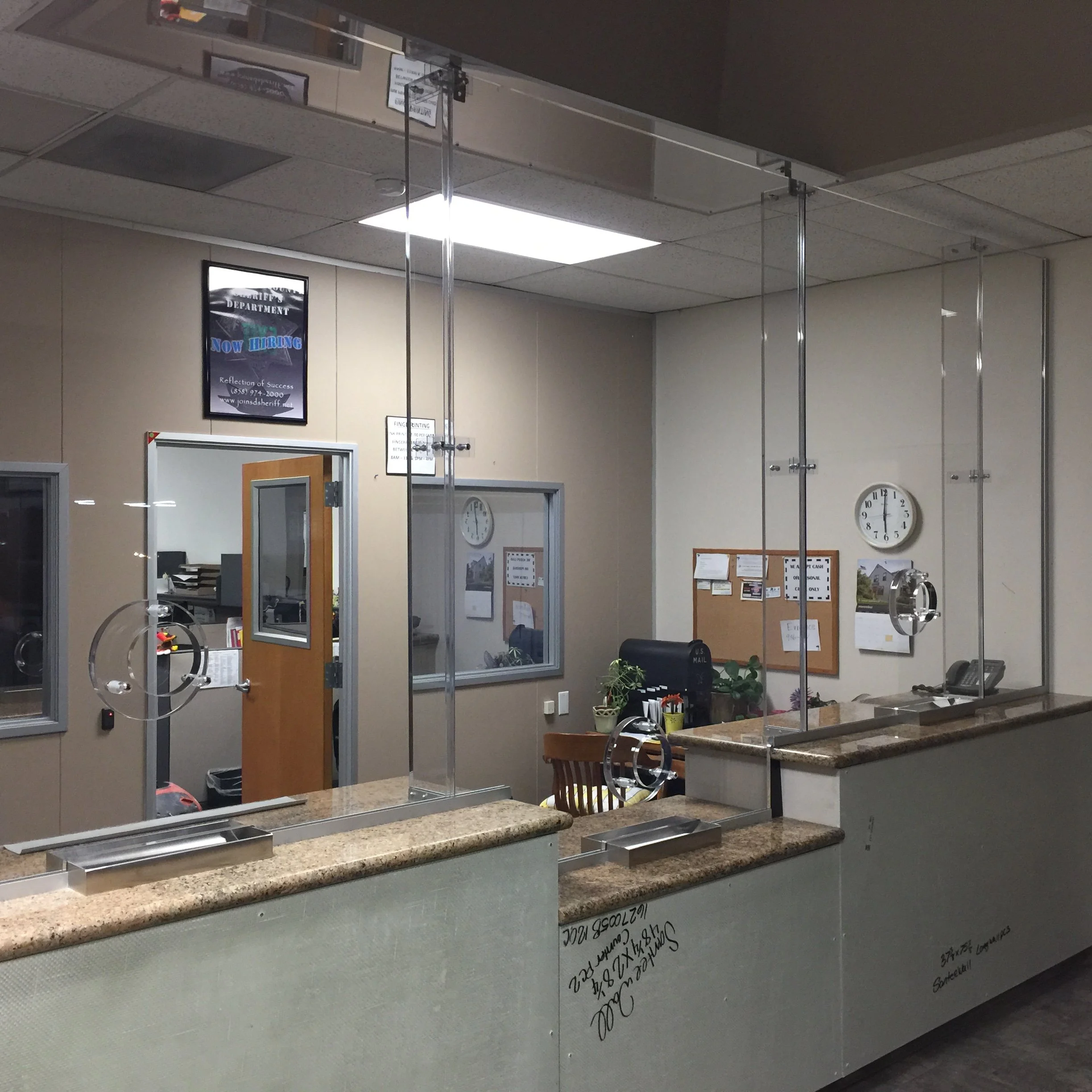

The Above is a Sheriff department Service Desk
This customer service counter for a California Sheriff's Department demonstrates that effective ballistic protection extends beyond the glazing alone. By integrating bullet-resistant wall armor into the counter and surrounding wall assemblies, the level of protection can be significantly enhanced. Depending on the threat assessment and project requirements, these systems can be engineered to provide protection against high-powered rifle threats, including AK-47 rounds.
Let us help
For over 25 years, we’ve designed and manufactured custom bulletproof safe rooms and bulletproof security projects for Government, Schools, Fortune 100 Companies, and Police and Sheriff Departments.
We can help from the job conception to completely, providing design services, custom fabrication, project management, and quality control.
For inquiries, please contact us at (800) 736-9808.
Consulting With Law Enforcement
We provide consulting to law enforcement and government to teach them how bullet resistant armor works, how bullets react with it, and how to safely implement the use of it.
Engineered and Cut to Size for Easy Installation
We provide full design and fabrication services to make your job run smoothly, and save both time and installation cost in the field. We can engineer and cut your panels to exact sizes, to make installation simple.
Learn More About Bulletproof Armor Panels
Whether you need bulletproof wall armor solutions for your office, school, or home, we help you from design to installation. Want to start your project now?
Call us at (800) 736-9808 to get started.
